### Pictures of the vorticity of 2D Navier-Stokes equations

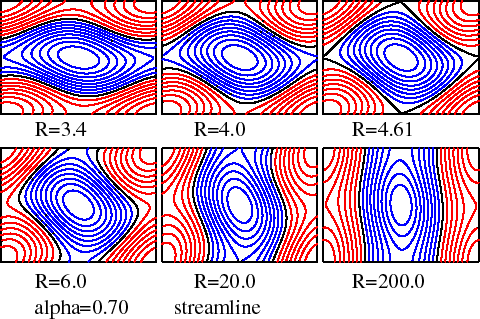

Streamline patterns with different Reynolds numbers

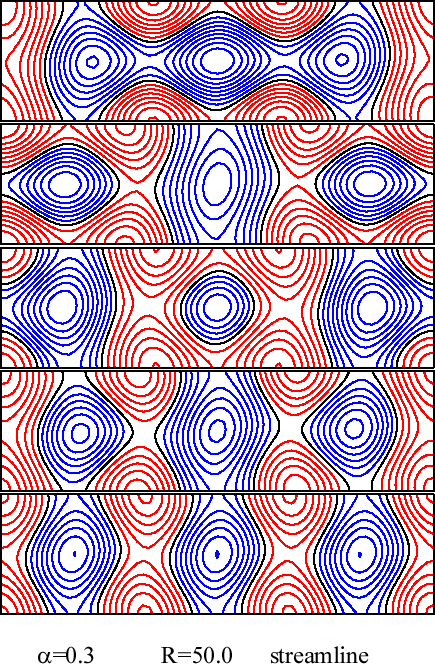

Streamline patterns of different, mode-3 solutions with the same
Reynolds numbers

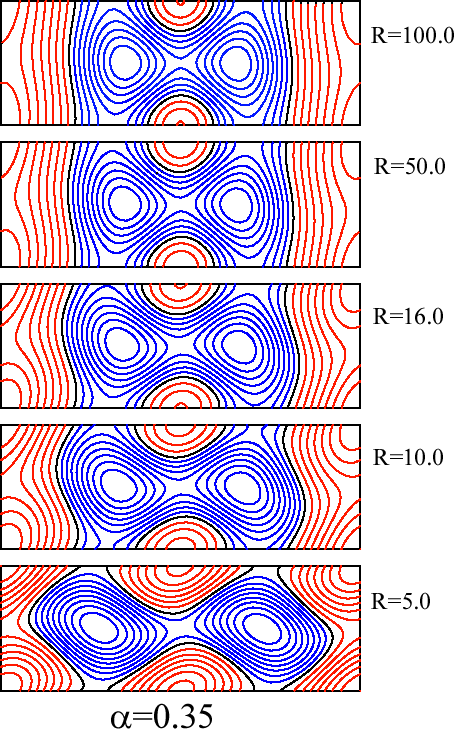

Streamline patterns of mode-2 solutions with different Reynolds numbers

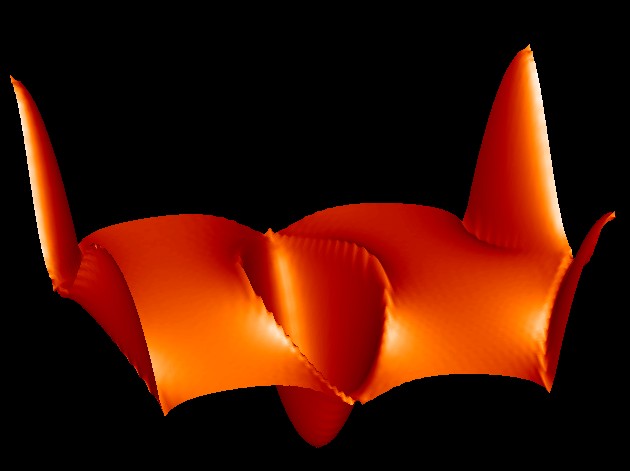

Stationary Navier-Stokes flow in 2D torus, the graph of the
derivative of the vorticity, the aspect ratio is 0.7

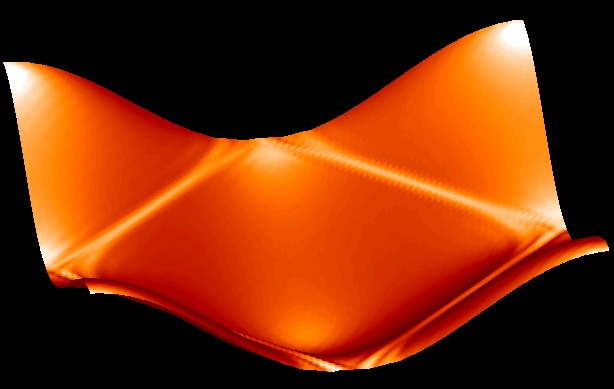

Stationary Navier-Stokes flow in 2D torus, the graph of the
the derivative of the vorticity, the aspect ratio is 0.999

### Computational data

- Reynolds number = 20000.0, aspect ratio = 0.70
- Reynolds number = 10000.0, aspect ratio = 0.999

See my paper " A Study of Bifurcation of Kolmogorov Flows with
an Emphasis on the Singular Limit,
Doc.Math.J.DMV Extra Volume III, (1998), pp. 513--522, which
you can download from internet
